Pod NOC


Total 23 racks were enshrined in the main entrance.

[Left (South)]   [Center (East)]   [Right (North)]

[004]
2006.6.7

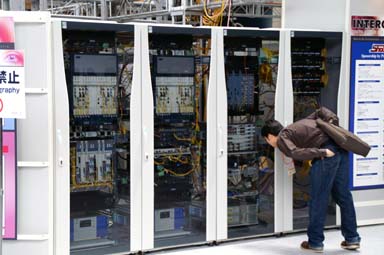

4 racks on the right (north) side.

Detail

[115]
2006.6.8

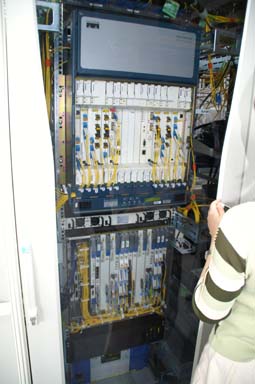

Rack #1.

Cisco ONS15454,
NEC SpectralWave DW4200.
[116]
2006.6.8

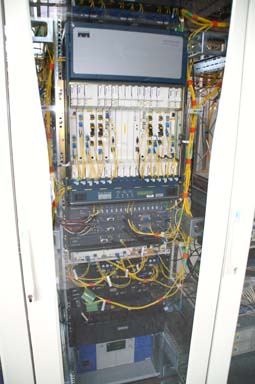

Rack #2.

Cisco ONS15454,
Hitachi Cable oWAVE,
Hitachi Cable eWAVE11001 × 2,
Hitachi Cable eWAVE10110,
NEC MW0521,
FXC × 2,
NEC QX-S3020TP.
[117]
2006.6.8

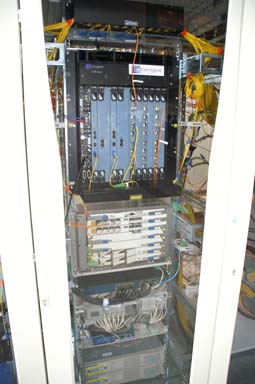

Rack #3.

Corrigent CM-106V,
Catalyst 3560.
[118]
2006.6.8

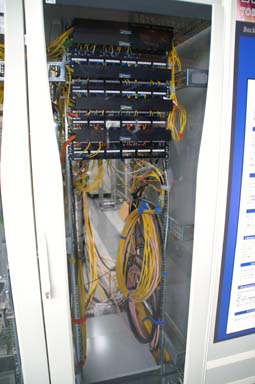

Rack #4.

[Left (South)]   [Center (East)]   [Right (North)]


A page of 2006tokyo
Roy, June 12, 2006
