2004.7.2 Front side view of NOC racks. Located at the main entrance on 2nd floor. |
|
[4]

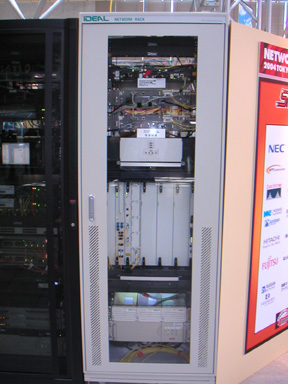

2004.7.2 Reduced to 17 racks this year. 9 racks + 4 racks each left/right side. |
|
[31]
2004.7.2 From the right side. |
|
[17]

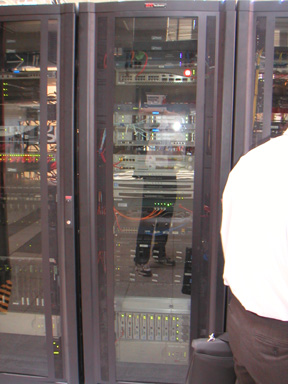

2004.7.2 Left side. |
|
[4]

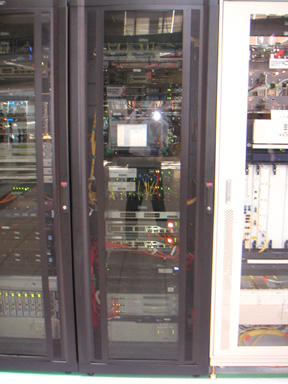

2004.7.2 Left side racks. The most left rack: ALTERPATH, NOKIA IP380, nCircle *3, Genie NRM NTG 2100, IBM EXT500, IBM FASet500, IBM Blade Center. The center rack: F5, Panasonic Network Rack Manager, NOKIA IP1260 *2, Scorpio *2 (Checkpoint), S@FEBORDER AP100, S@FEBORDER ID100M,Express5800, Genie ATP1600, NEC QX-S5012G, IBM *2, IRONPORT |
|
[5]
2004.7.2 IBM, DELL, Anritsu, Fujitsu XG800 *2 (aggregating four tapping 10GE's to one), Cisco 3750, F5 *2 (mirroring for inspection boxes), Man Hunt (DELL), Snort, Celestix Scorpio, IBM. |
|
[6]

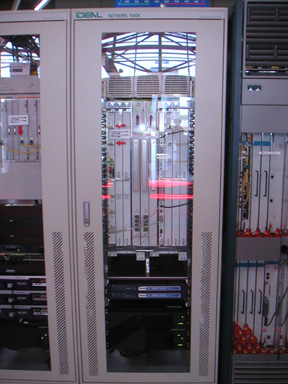

2004.7.2 NEC MG2000, Hitachi Cable *2, Infinera DTN. |
|
[7]

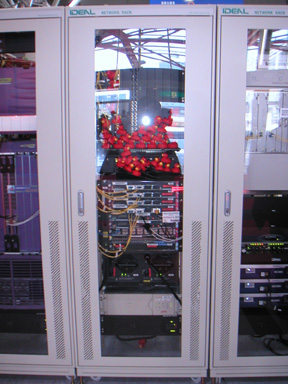

2004.7.2 Front racks. BD10808. Picking up Pod 2, 4 and 5. |
|
[8]

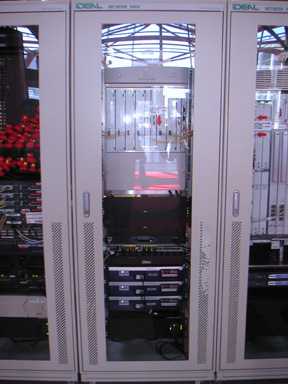

2004.7.2 BI MG8 (picking up Pod 1; delivering to PRO/8812 and Cisco 12810), Catalyst 6509 (picking up Pod C, 7 and TC; delivering to Fujitsu GeoStream and NI40G), with Firetide's Devilducks. |
|
[9]
2004.7.2 Fujitsu GeoStream R990, cyclades ALTERPATH, CentreCOM8948XL, Avalanche *3. |
|
[10]
2004.7.2 PRO/8812 for her final promotion, Panasonic Network Rack Manager *2. |
|
[11]

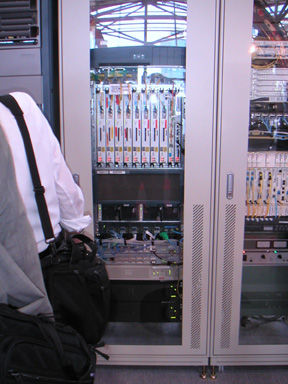

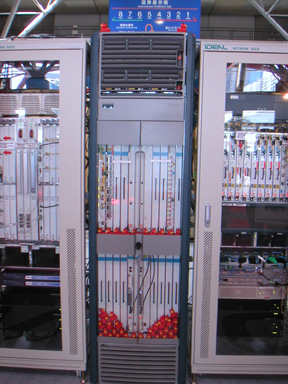

2004.7.2 The first Cisco CRS-1 in Japan, with four OC-192c's. |
|
[12]

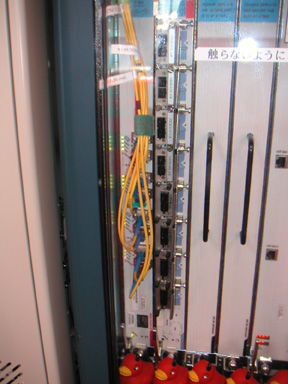

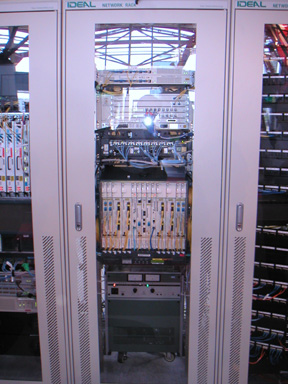

2004.7.2 Cisco 12810 with two OC-192c's and six 10GE's, Cisco 3550, CentreCOM9816GB *2. |
|
[13]
2004.7.2 Layer 1 products. NEC MZ1101 *2, NEC MG4040, NEC MG8000, Cisco 15000. |
|
[14]

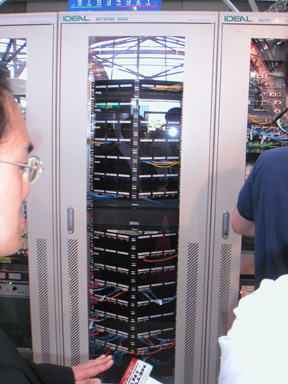

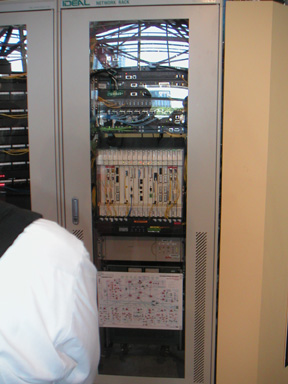

2004.7.2 Angled patch pannel. |
|
[15]

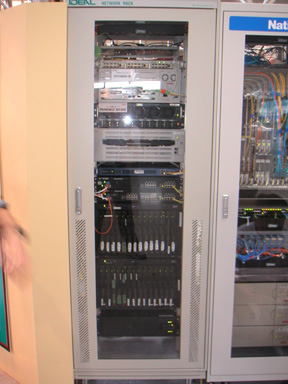

2004.7.2 Hitachi Cable, NEC MG8000, Fujitsu, Cisco 15000. |
|
[16]

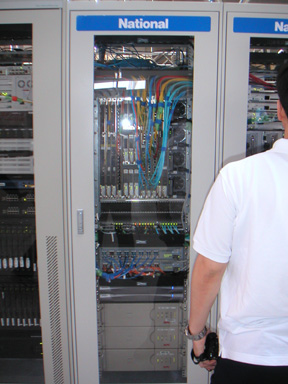

2004.7.2 Right side racks. Hitachi IP TOWER-SP, PRIMERCH BX300, Blade IA server, NEC Express5800 Blade, Applico *2, ServerIron *2, IBM Blade Center *2 |
|
[17]

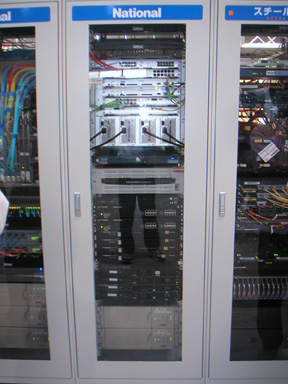

2004.7.2 Force10, CentreCOM8948XL *2, CentreCOM9816GB *2, Raritan *2. |
|
[19]

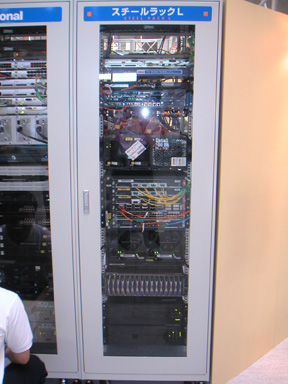

2004.7.2 Hitachi GS4000-160F, Cisco 1130, NEC Express5800 Blade Server, IBM, Server Iron *2, IPv6/IPv4 Translator TTB3020 *2, TTB3010 *1, IBM *4. |
|
[20]

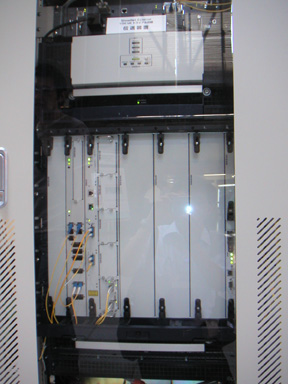

2004.7.2 Hitachi GR2000-2B, Network Rack Manager, Patch Pannel, IntruShield4000 (McAfee), IBM Server w/Intel 10G SR NIC, Catalyst 6500, SunFire B1600. |
|
[45]

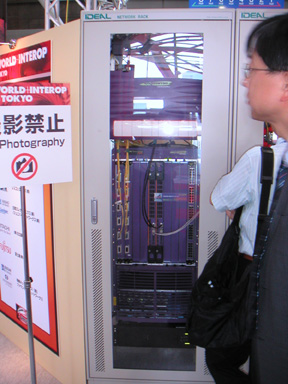

2004.7.2 Infinera DTN, in the 4th rack of the left side row. |
|
[46]

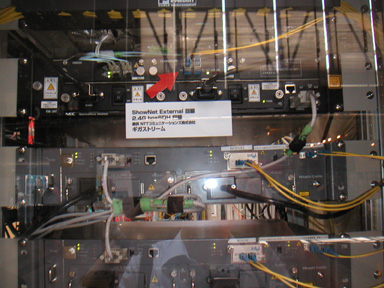

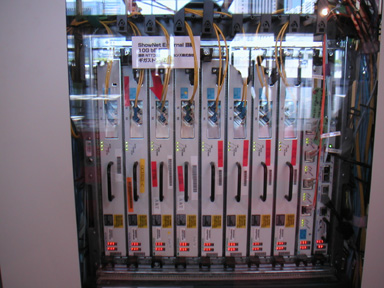

2004.7.2 An OC-48c, contributed by NTT Communications, for the backup. |
|
[47]
2004.7.2 10GE's for the external connectivity (10GE*4). Relaying the signals between here Makuhari and Otemachi in downtown Tokyo. Local: PRO/8812 and Remote: Hitachi GR4000 (2 lines), Cisco 12810 and NI40G in Otemachi and Fujitsu GeoStraem and PRO/8801 |
|
[48]
2004.7.2 OC-192c's on CRS-1. Coming from Cisco 12810 in NOC (2 lines), T640 in Pod 2 and C12810 in Pod 5 |
